Align

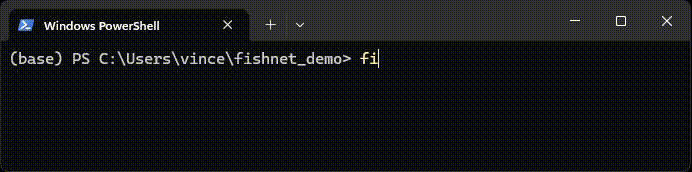

fishnet align \
  --bam <basecalls.bam> \
  --pod5 <raw-signal.pod5> \
  --out <output-file>

With Fishnet, signal-to-sequence alignments are created using the align command. It is possible to align both the base-called (query) and (if present) the reference sequences to the signal.

General info: Signal-to-sequence alignments

A signal-to-sequence alignment A is an array of signal indices, where the pair A[i], A[i+1] corresponds to the start and end indiced on the signal assigned to base i. The intervals are half-open (start is included, end is not).

    Signal:
    ┌──────────────────────────────┐
    │ x                      xxxxx │
    │x x      xxx           x     x│
    │   x    x   xxxx      x       │
    │    xxxx        xxxxxx        │
    └──────────────────────────────┘
    012345678901234567890123456789  (Signal index)

    Sequence:
    A C G T A                 (length = 5)

    Signal-to-sequence:
    [0, 4, 9, 16, 23, 30]     (length = 6)
    ┌────┬─────┬───────┬───────┬───────┐
    │ x  │     │       │       │ xxxxx │
    │x x │     │xxx    │       │x     x│
    │   x│    x│   xxxx│      x│       │
    │    │xxxx │       │xxxxxx │       │
    └────┴─────┴───────┴───────┴───────┘
    │0123│45678│9012345│6789012│3456789│
    │ A  │  C  │   G   │   T   │   A   │

The alignment requires the following input data:

1. Raw sequencing data. Must be stored in POD5 format
2. Basecalled data. Must be stored in a single BAM file, as produced by Dorado (Note that it must contain the move-table, so base-call with the --emit-moves flag!)

Usage examples are provided in Examples.

Required arguments

The following arguments are required:

Long flag	Short flag	Explanation	Type
--pod5	-p	Path(s) to one or more pod5 files and/or directories containing pod5 files (separate multiple paths by space)	Path(s) (file or directory)
--bam	-b	Path to a bam file (as given by Dorado; must contain move tables for each read)	Path (file)
--out	-o	Path to the output file. Must end with .parquet (recommended) or .jsonl depending on the wanted output format	Path (file)

Optional arguments

The following arguments are the most relevant optional arguments for most users:

Long flag	Short flag	Explanation	Type
--rna	-r	Whether the provided data is direct RNA sequencing data. If set, the signal gets reversed for the alignment (dRNA signals are measured 3'-5')	Flag
--kmer-table	-k	Path to a kmer level table. This is only required if no embedded kmer table can be matched to given data (more information)	Path (file)
--alignment-type	-a	Which type(s) of alignment to generate. Can be 'query' (Default) to align the signal to the base-called sequence, 'reference' to align to the reference sequence (if mapped)or 'both' to do both.	Enum (query, reference, both)
--threads	-t	Number of parallel threads to use. Default: 8	int
--force-overwrite	-f	If set and an output file already exists, this file will be overwritten. Raises an error otherwise	Flag

For the sake of simplicity, the table shows only a subset of the optional arguments. For an overview of all arguments, see Command line arguments.

Output

The output format is determined by the file extension provided in the output file path. Available formats are Parquet (.parquet) and JSONL (.jsonl) format. Parquet format is recommended as it is more efficient due to compression and chunked writing/reading.

The exact output structure depends on the given values for the --alignment-type and --output-level flags. For a detailled overview on which columns are present with which settings, see Output formats.

Algorithm details

The sequence-to-signal alignment is calculated in a two step process. An initial alignment is set up from the move table generated during base-calling. Afterwards, the alignment can be refined in an iterative approach where the signal boundaries are shifted to minimize the distance between the observed and expected signal intensities.

For a detailed description of all steps, see Algorithm details.
